DPM Systems Technologies Recoil System CZ TS Orange & TS 2 9mm -12 user settings-

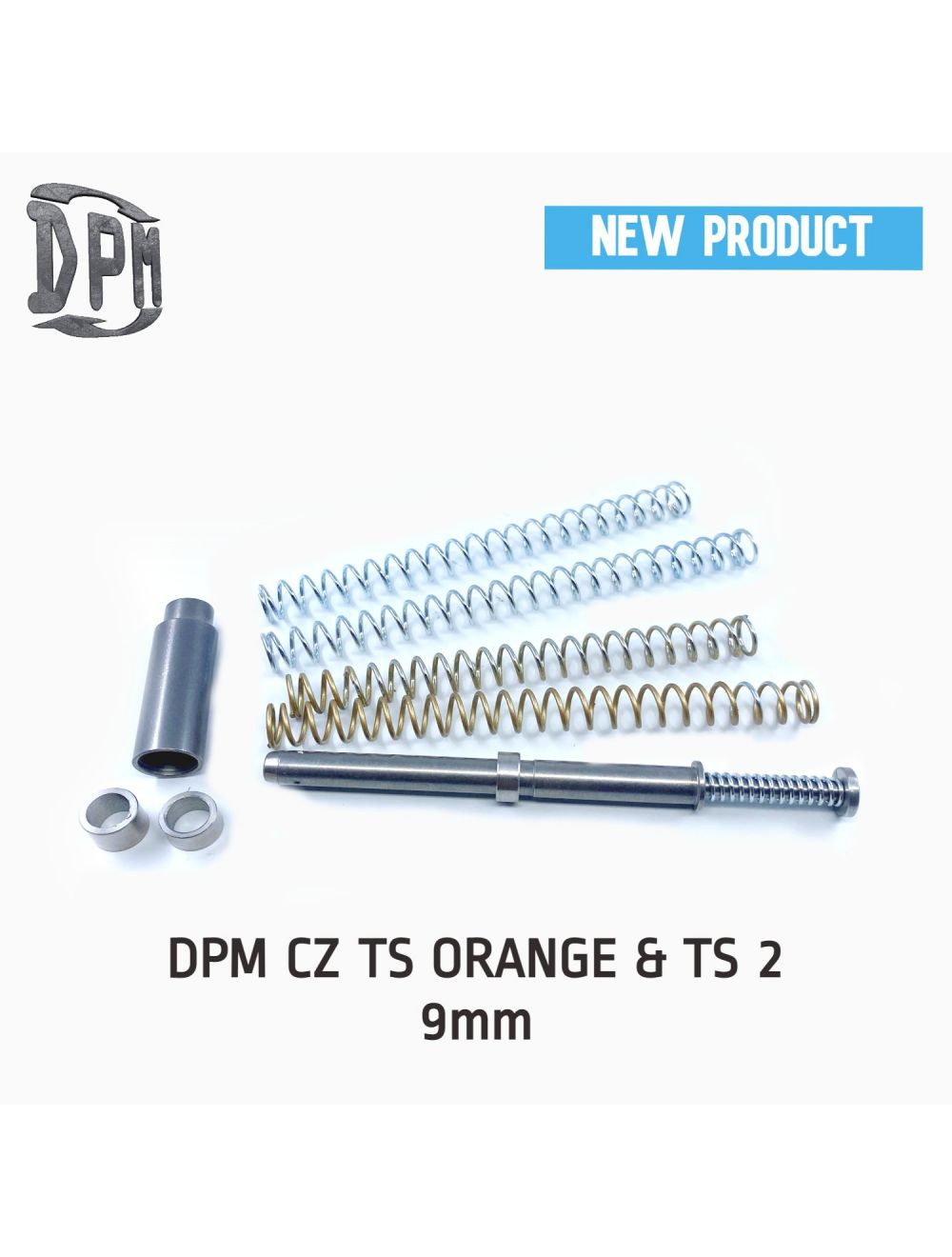

DPM Mechanical Recoil Reduction System for CZ TS 2 & TS Orange 9mm -12 Combinations-
This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame. The system includes 4 different powered springs and 3 different sized spacers so the user can fine tune the opening and locking position forces on the pistol’s slide. The springs wire diameter is 1.0mm.
Following are the power rates of each spring and spacer.
Power Rates of the External Springs – Slide on the battery (closed).
The 2 Gold Springs are softer/lighter and 2 Silver Springs are harder.
S 1 Gold Short (23.5 coils): 5.7 lbs
S 2 Gold Long (25 coils): 6.6 lbs
S 3 Silver Short (23.5 coils): 7.3 lbs
S 4 Silver Long (25 coils) : 8.4 lbs
Power Rates of the spacers – Slide full open position.
Attention: The spacers co-operate only with the DPM Sping Plug that is included.
Short Spacer: 15 lbs approx.
Medium Spacer: 19 lbs approx.
Long Spacer: 23 lbs approx.
